DC2324A: 9-18 Vin | 18-36Vin | 36-72Vin to 24Vout 120W Active Clamp Forward

DC2324A
  • Size: 21.3 wide x 23.3 mm length x 9.6 mm Height
  • DC2324A designed as 24Vout | Output Voltages available to span range from 3.3 to 54Vout
  • Optimized for Active Clamp Forward Topology.
  • Secondary winding for direct Synch Rect Drive
  • Typical Efficiency 94-95%
  • Aggressive Interleave planar construction -- lowest achievable Leakage Inductance.
  • Multilayer PCB optimization for lowest AC resistance & Proximity Loss Effect.
  • Wide variety of PNs, Designs and Turns Ratios in stock. If not listed, Contact Us.
  • Integer Turns 1 thru 16 Available [Contact Us if Not Shown in Table].
  • Avaliable with Thermal Pad or Heat Sink.
  • Surface Mount, Thru-Hole, Pad-to-Pad, Embedded Planar Windings as Options.
  • See also Champs 'G45R2' Series & DC1317A
  • Champs DC2324A & G45R2 DataSheet

Table I: G45R2 Series Rated to 24Vout at 120W Output.

Champs PN

Vin (Min)

Vin (Max)

Vout

Iout (Adc)

Freq (KHz)

Ref Design

Output Inductor PN

G45R2-0808-S01-80R

36

72

24

5.0

240

DC2324A-A

PQA2050-39-LTC

G45R2-0408-S01-25R

18

36

24

5.0

240

DC2324A-B

PQA2050-39-LTC

G45R2-0208-S01-8R

9

18

24

4.0

240

DC2324A-C

PQA2050-39-LTC

Notes:
1. Consult Linear Tech Ref Design BOM and Schematic for exact device as specified for use by Linear in that Reference Design.
2. In all cases Champs Technologies makes no representation as to suitability of the Reference Design itself as that is the design responsibility and Intellectual Property of Linear Technology.
3. Champs Technologies responsibility is limited to the use of its component as described in the Data Sheet and any warranty express or implied is limited to component replacement if found defective.



DC2324A Reference Design URL:

DC2324A-A - LT3753EFE Demo Board Isolated Forward, 36V ≤ VIN ≤ 72V; VOUT = 24V @ 5A

 https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2324a-a.html#eb-overview

DC2324A-B - LT3753EFE Demo Board | Isolated Forward,    18V ≤ VIN ≤ 36V; VOUT = 24V @ 5A

https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2324a-a.html#eb-overview

DC2324A-C - LT3753EFE Demo Board | Isolated Forward,   9V ≤ VIN ≤ 18; VOUT = 24V @ 4A

https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2324a-a.html#eb-overview

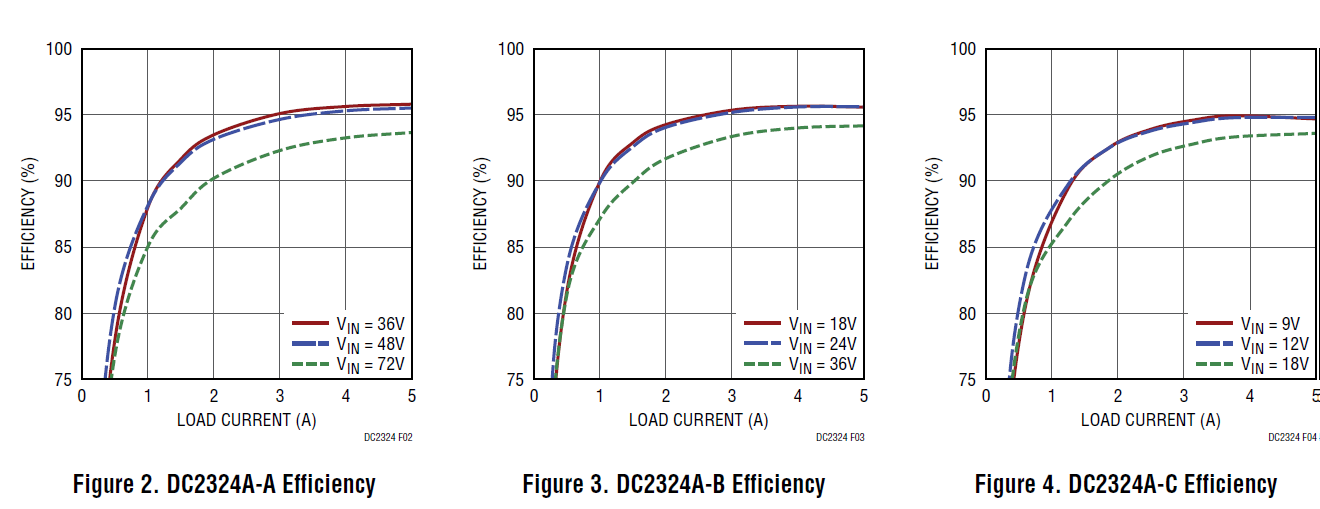

Efficiency




Schematic

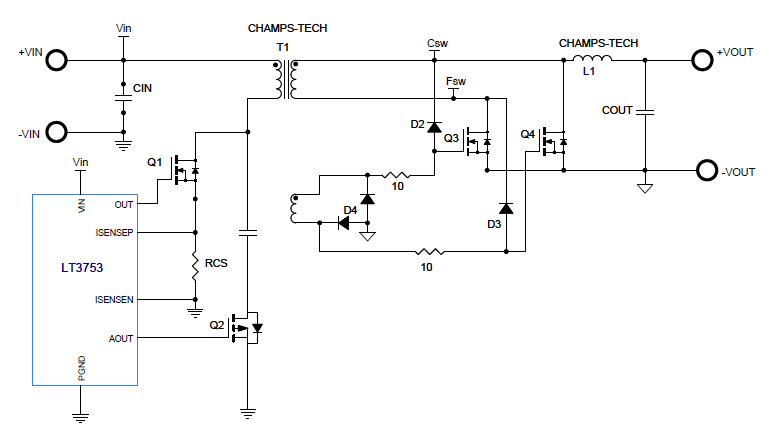

Reference Design Schematic



Mech

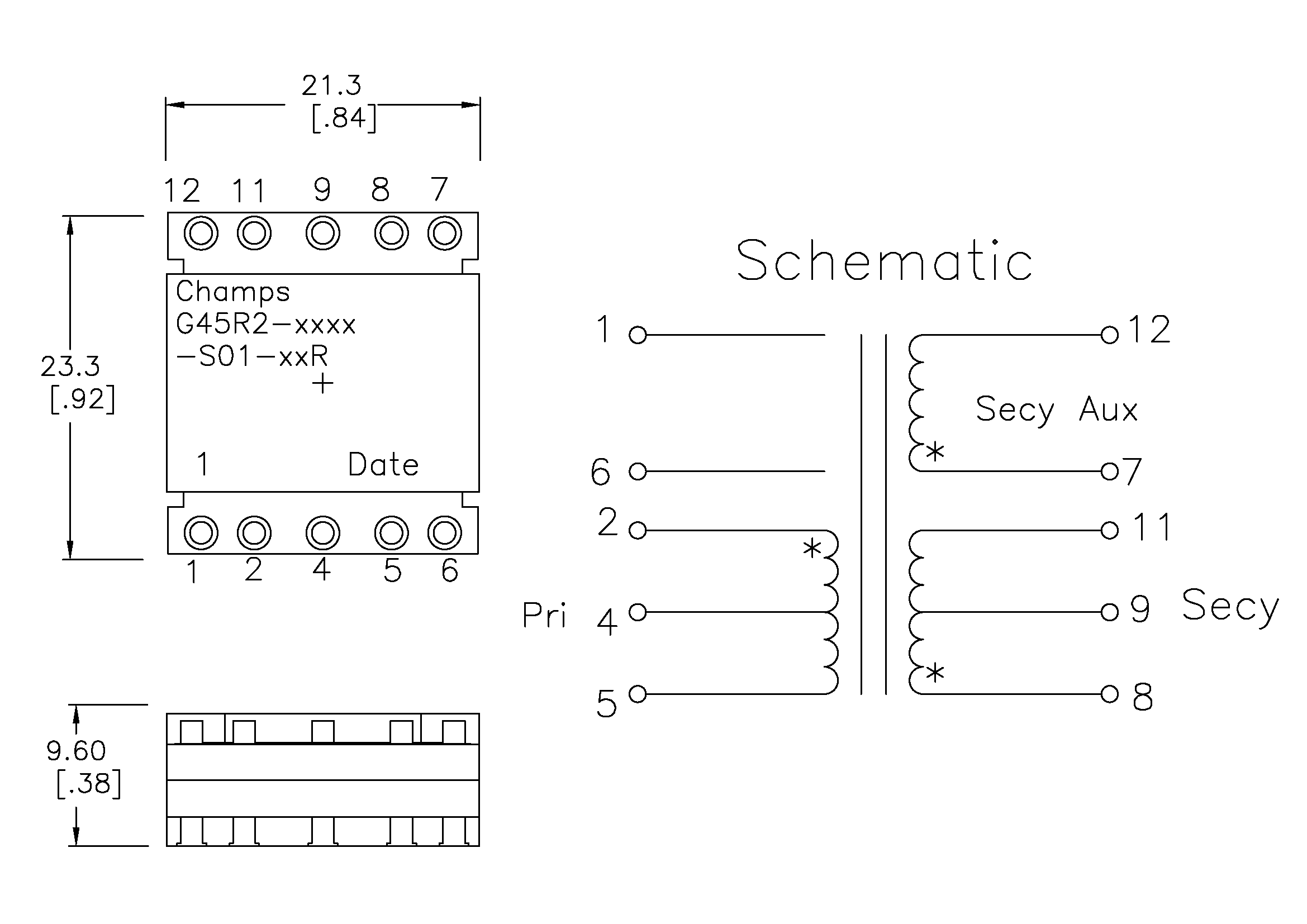

Mechanical Design Drawing G45R2 Surface Mount
