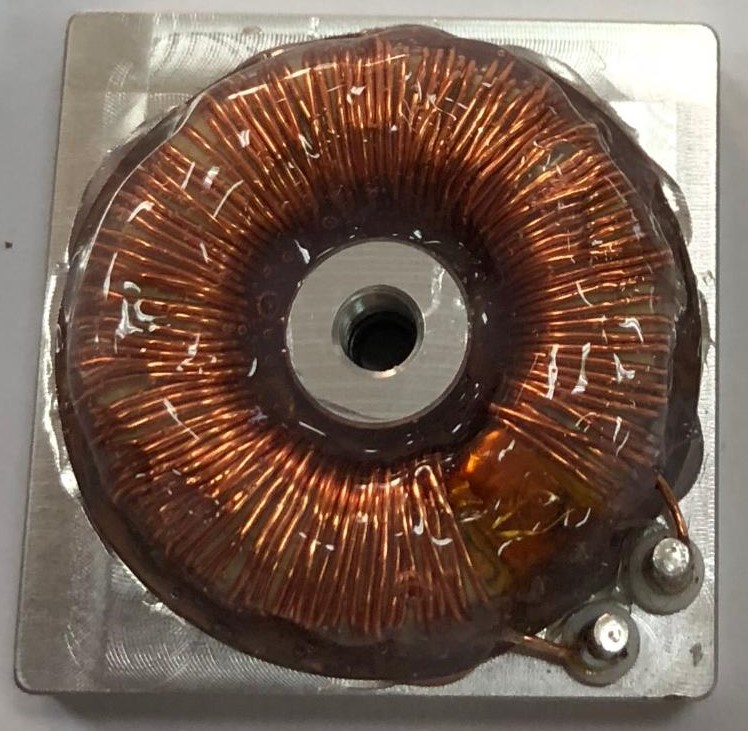

Champs PF Inductor Series Horizontal Toroid Mount



PF
  • Size: 30mm Dia or x 30 x 30 mm Footprint
  • Low Profile: < 12.7 mm Height
  • Proven in actual PFC Designs
  • Designs Available as Demonstration Boards.
  • Optimized for CCM Mode Operation.
  • Typical Efficiency 98.5%
  • Wide variety of PNs, Designs and Mechcanical Choices in stock. If not listed, Contact Us.
  • Surface Mount, Thru-Hole, Base Plate, Thermal Pad available as Options

1. Input Voltage Range 85-265 VAC RMS, 50-440 Hz, CCM Mode.

Champs PN

Inductance (uH)

Ripple (%)

Vout

Iout (Adc)

Pout (Watts)

Freq [KHz]

Ipk [Rated]

Ipk

[Max]

Mode

229-1M2

1200

33

300

0.45

135

105

2.4

3.6

CCM

250-566R

566

33

400

0.625

250

105

4.3

6.4

CCM

350-400R

400

33

400

0.875

350

105

6.0

9.0

CCM

500-285R

285

33

400

1.25

500

105

8.6

13.0

CCM

Note: At 100C Operating Ambient the above PNs will operate with a de-rated 90%Power Rating Listed



Champs Part No
Dimension A
Dimension B
Dimension C
Dimension D
Dimension E
Other
229-1M2 [See Note 1]
30.0 [1.18]
30.0 [1.18]
12.3 [0.48]
12.7 [0.50]
25.4 [1.0]

229-1M2-HTP
28.0 [1.10]
25.5 [1.0]
14.5 [0.57]
0.50 [0.020]
1.0 [0.040]

229-1M2-HTM
35.3 [1.39]
30.5 [1.20]
15.5 [0.61]
0.50 [0.020]
1.0 [0.040]


Mechanical Dimensions [Per Drawings Below]

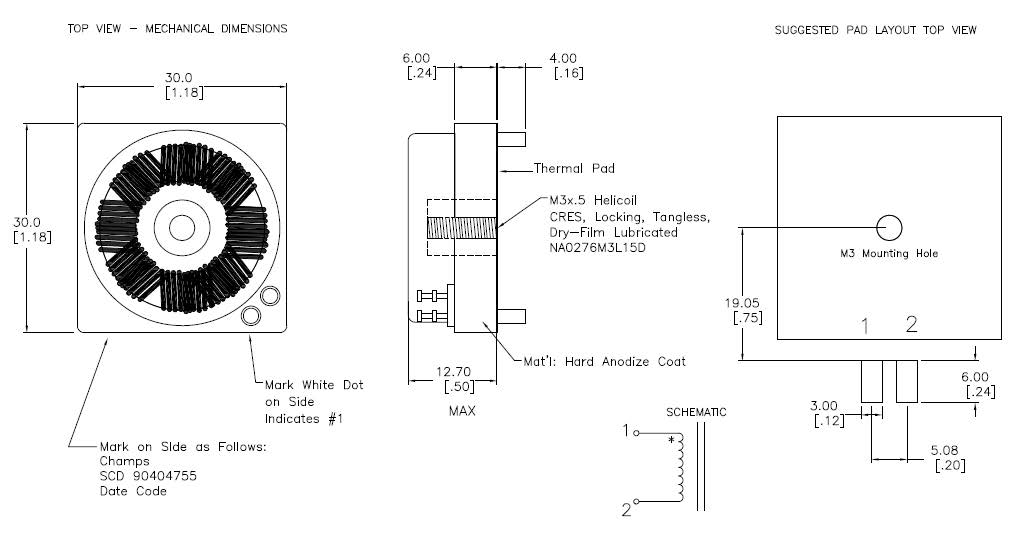

229-1M2

Fig 1: MIL/AERO Mechanical Design Drawing

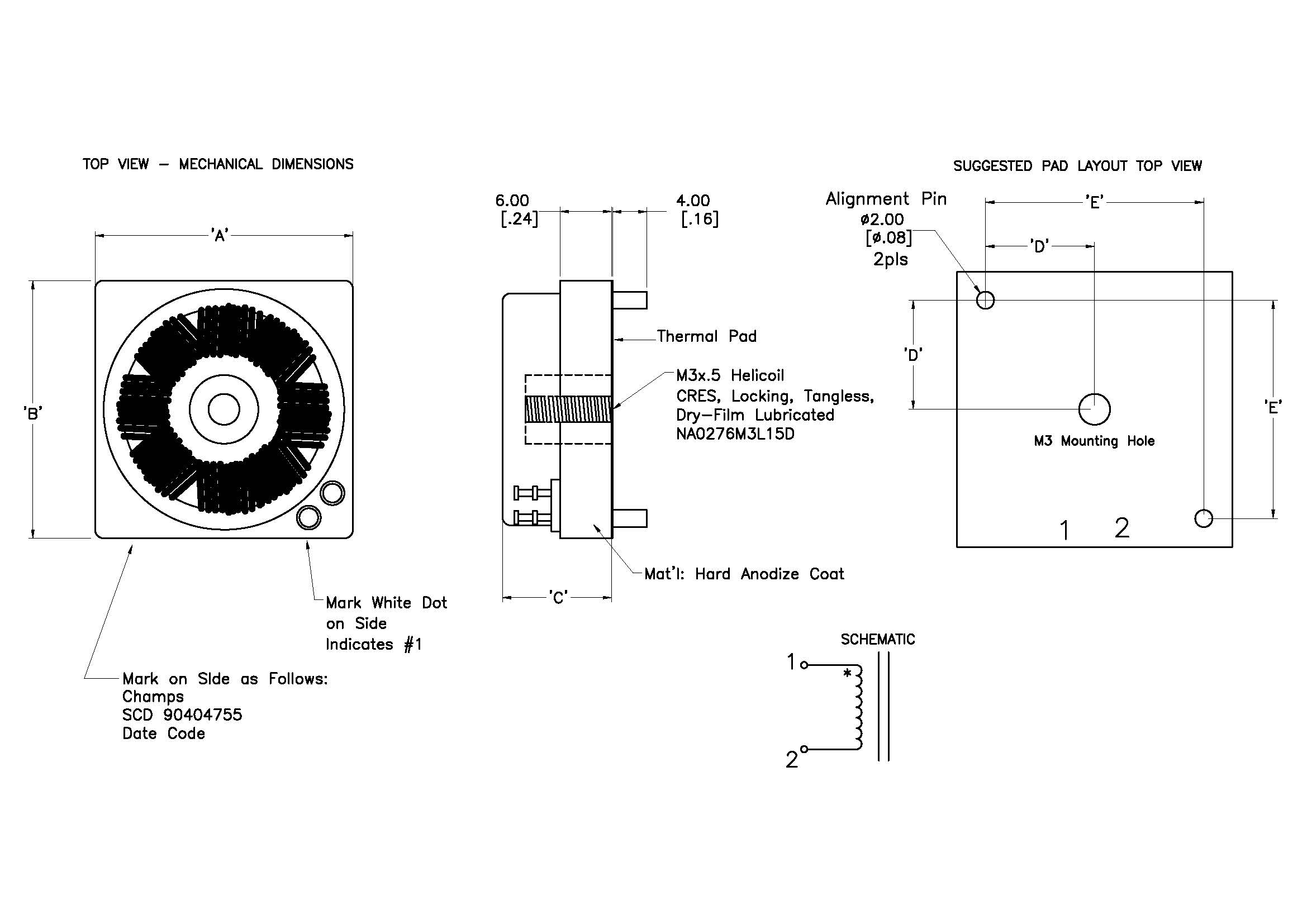

AP

Fig 2: MIL/AERO -AP Option

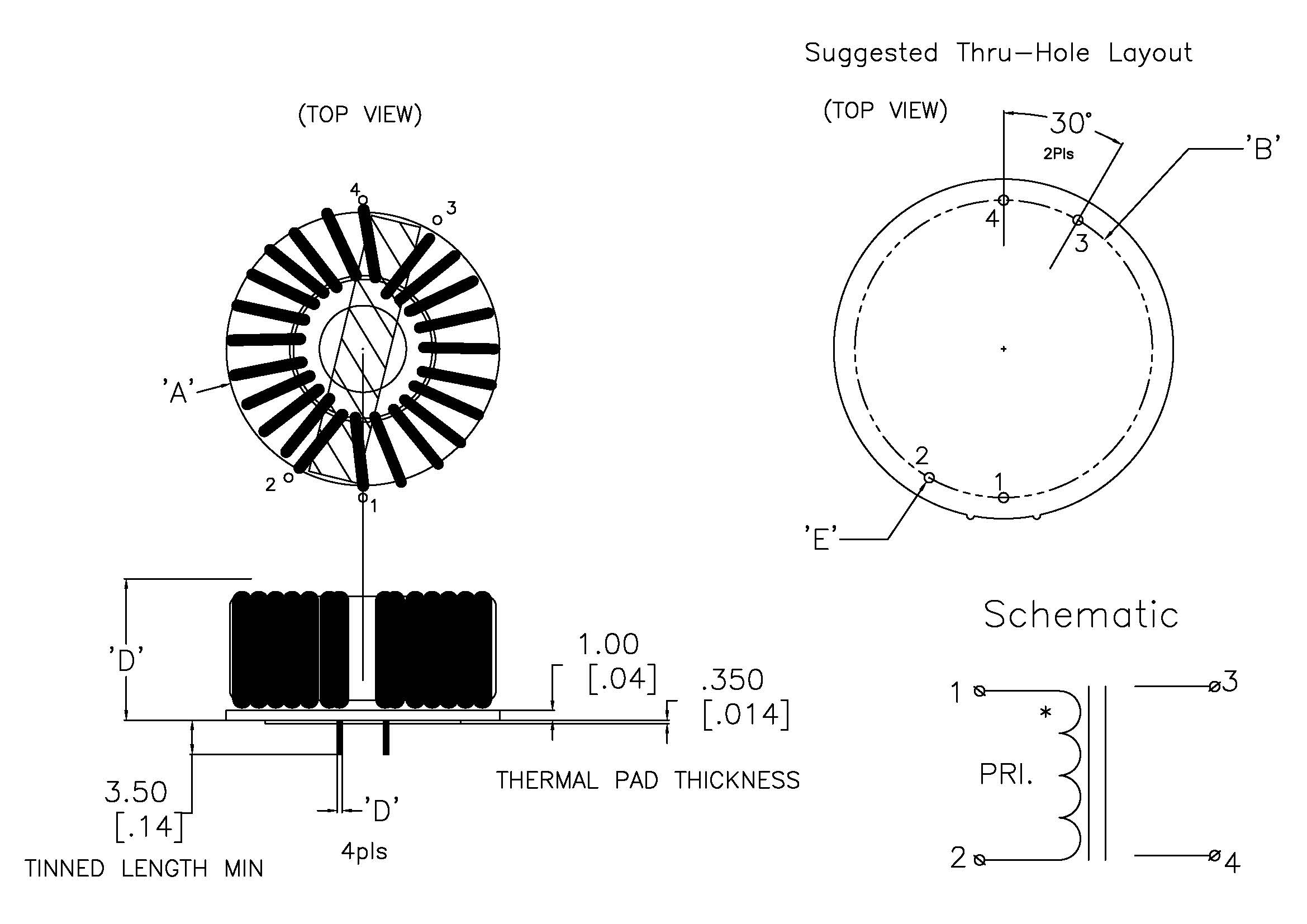

HTP
Fig 3: 'HTP' Mechanical Design Drawing

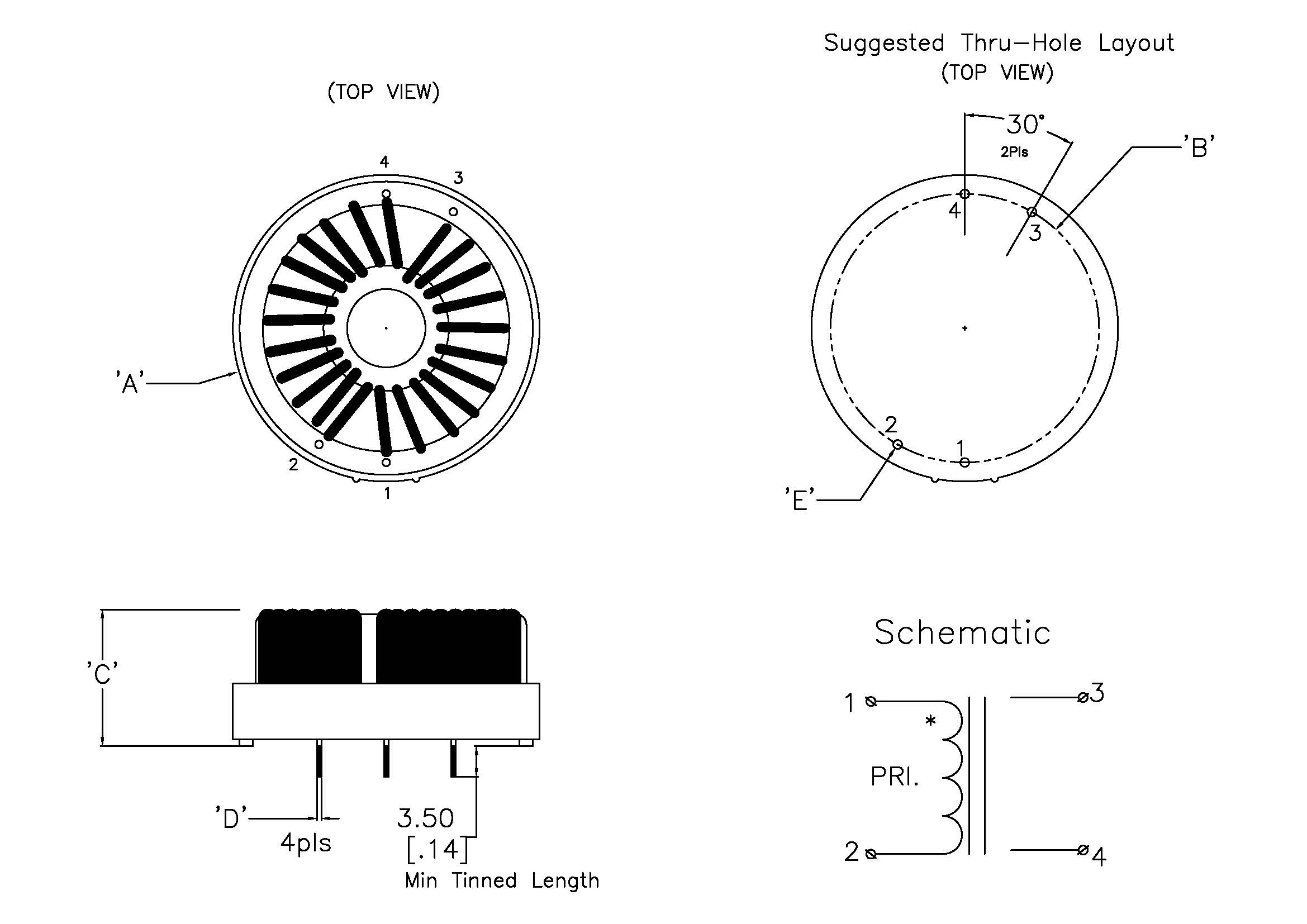

HTM
Fig 4: HTM Mechanical Design Drawing
