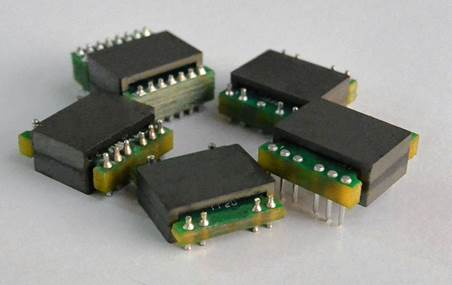

Champs G45 Series Active Clamp Forward Solutions DC1994A & DC2050A

Size:21 x 23 x 9.8mm Ht Forward Active Clamp Topology. Aggressive Interleave planar construction -- lowest achievable Leakage Inductance. Multilayer PCB optimization for lowest AC resistance and Proximity Effect. Wide variety of Turns Ratios in stock. If not shown, we have it. Contact Us to Implement in DC-DC Converter Module Design Contact Us for SM Assembly of all Components for DC-DC Converter

1. Active Clamp Forward Input Voltage Range 18-72.

Champs PN	Vin (Min)	Vin (Max)	Vout	Iout (Adc)	Pout (Watts)	Freq (KHz)
G45AH2-0404-04	18	72	12.0	12.0	144	240
Note:

DC1994A Ref Design Catalog

LT3752 Product Page & DC1994A Ref Design:

https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc1994a.html#eb-overview

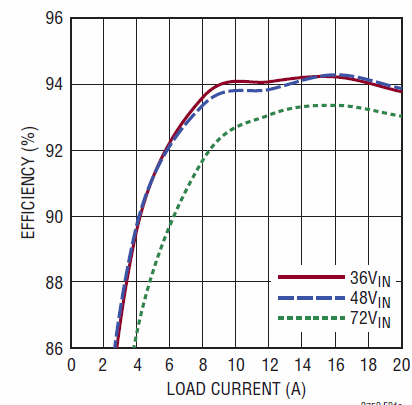

2. Ref Design DC2050A. Input Voltage Range 9-36 || 18-72 || 36-72.

Champs PN	Vin (Min)	Vin (Max)	Vout	Iout (Adc)	Pout (Watts)	Freq (KHz)	Output Inductor
G45R2-0902	36	72	5.0	20.0	100	240	PQl2050-3R3-HX
G45R2-0209	9	36	5.0	20.0	100	240

LT3753 Product Page & DC2050A Ref Design:

https://www.analog.com/en/design-center/evaluation-hardware-and-software/evaluation-boards-kits/dc2050a.html

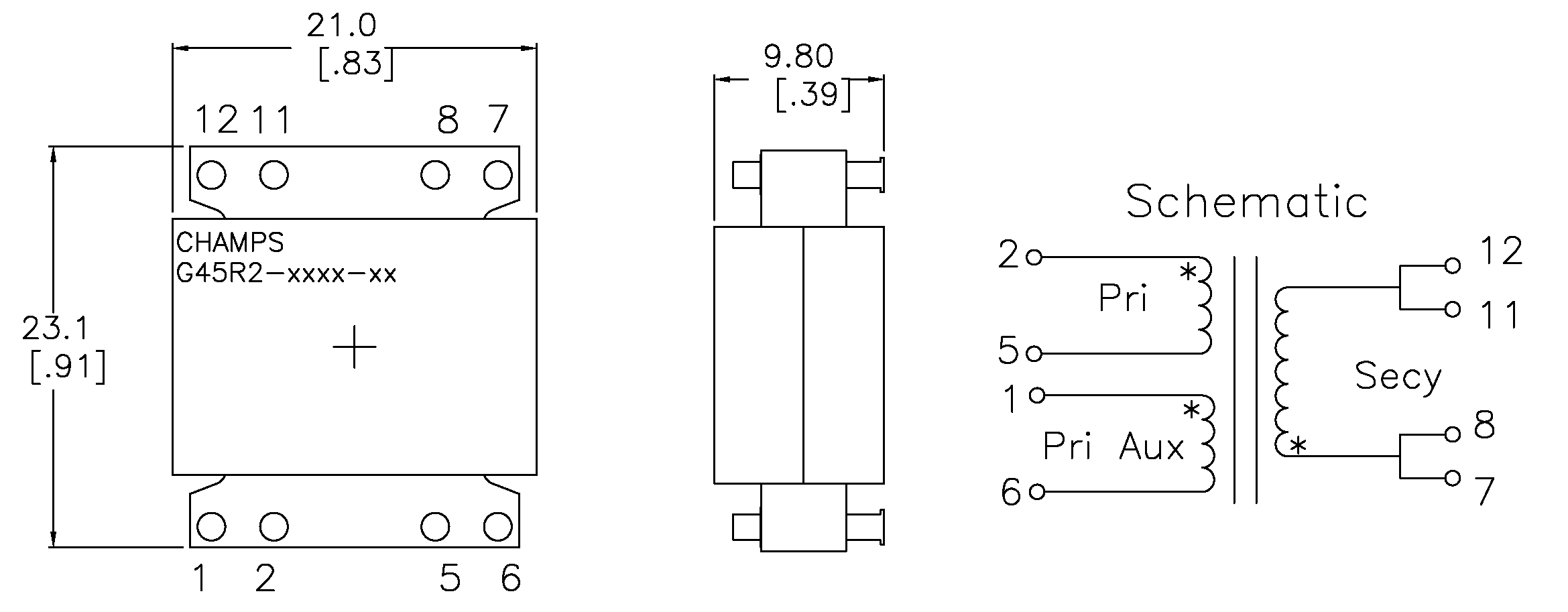

Mechanical Design Drawing Surface Mount

Options include discrete component or integrated complete DC-DC Converter Module:

• Surface Mount Discrete Component Design.

• Discrete Component Implemented in Pad-to-Pad Mounting.

• Component implemented as Half-Embedded Design + SM Assembly of all components required of DC-DC Converter.

• Implemented as a Fully Embedded Design + SM Assembly of all components required of DC-DC Converter.

• SMT Component Assembly of PCB Including Planar Magnetics Inclusive of Converter Testing. Volume capacity 100K per month

Notes:
1. Consult Linear Tech Ref Design BOM and Schematic for exact device as specified for use by Linear in that Reference Design.
2. In all cases Champs Technologies makes no representation as to suitability of the Reference Design itself as that is the design responsibility and Intellectual Property of Linear Technology.
3. Champs Technologies responsibility is limited to the use of its component as described in the Data Sheet and any warranty express or implied is limited to component replacement if found defective.
