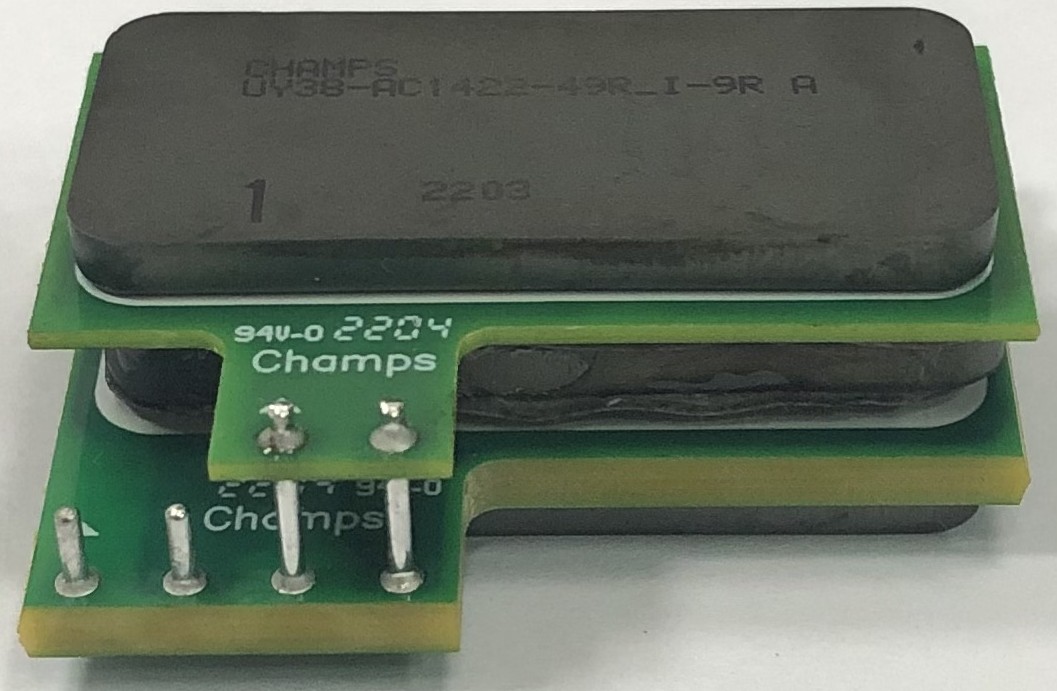

Champs-Tech UY38+ Series PSFB: FWCT + Current Doubler Transformers

General Notes:

1.  Topology: PSFB to Current Doubler and FWCT DC-DC Converter applications.

2. Add thermal pads in combination with heat sinks and clamps allows for higher power throughput at rated ambient and hot spot temperatures.

3. Size: 25mm wide x 48mm length x 10-12mm Height

4. Multilayer PCB optimization for lowest AC resistance & Proximity Loss Effect

5. Integer Turns available from 1T to 40T.                               .

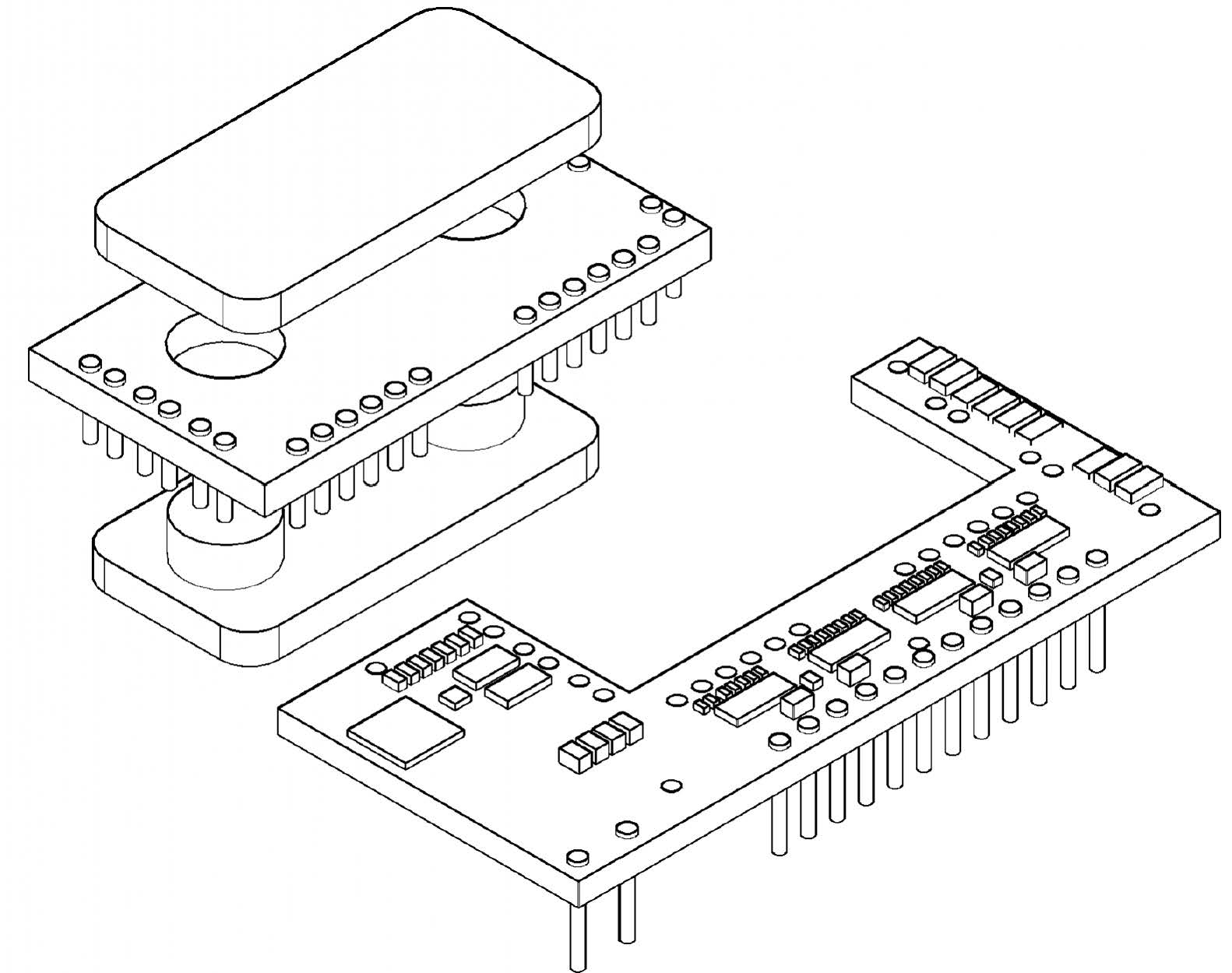

6. All designs can be supplied with planar windings embedded in the pcb of the Main Module of the converter. Installed power components, SM Assy and Heat Sink + incorporation into a module available.

7. Wide variety of PNs, Designs and Turns Ratios in stock. If not listed, Contact Us

8. Surface Mount, Thru-Hole, Pad-to-Pad, Embedded Planar Windings as Options

UY38+ PSFB Series Catalog

1. Input Voltage Range 210-440.

Champs PN	Vin (Min)	Vin (Max)	Vout	Iout (Adc)	Pout (Watts)	Freq (KHz)	Secy Topology	Half Period Duty	Full Period Duty
UY38-1216-250D	210	440	250	4.0	1000	300		46%	92%
	200	320	17	65	1100	200		43.8%	87.6%

2. Input Voltage Range 350-420.

Champs PN	Vin (Min)	Vin (Max)	Vout	Iout (Adc)	Pout (Watts)	Freq (KHz)	Secy Topology	Half Period Duty	Full Period Duty
UY38-160202-TH	300	420	28.0	21.5	600	200	FWCT or CDBL	38.5%	76.9%
UY38-240404-TH	360	420	25.0	48	1200	200	FWCT or CDBL	42.9%	85.8%
UY38-240404-250D	360	420	48.0	25.0	1200	200	FWCT or CDBL	41.2%	82.4%

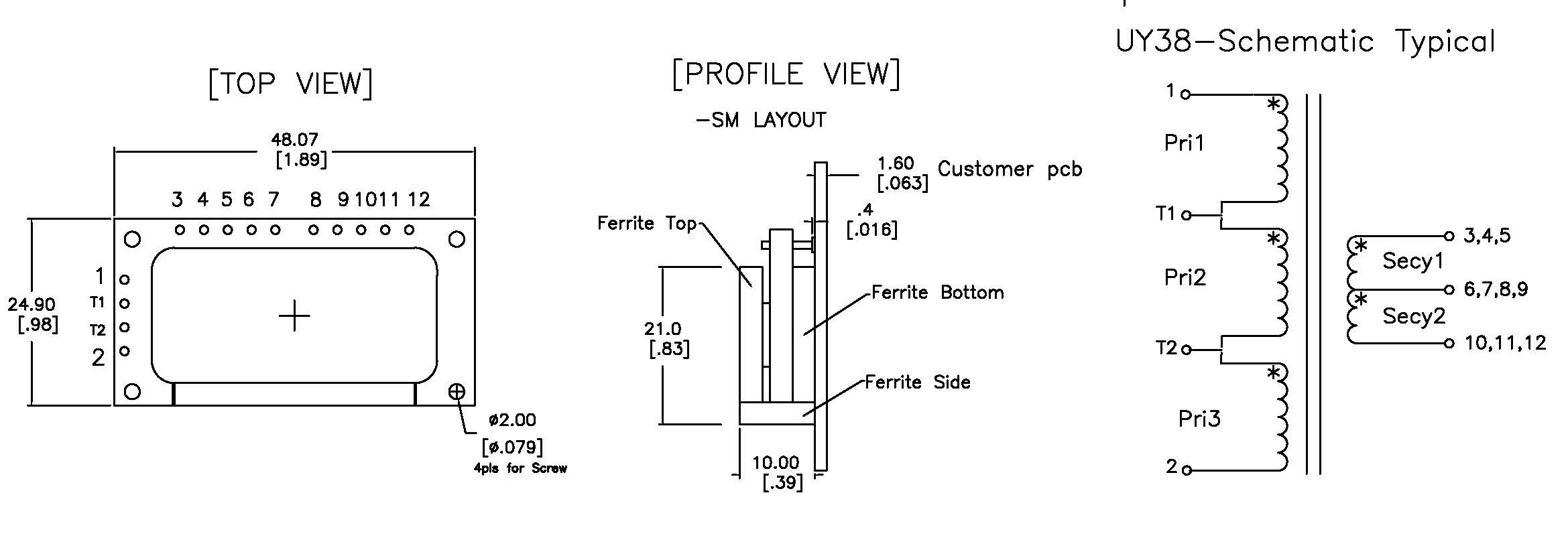

UY38 Mechanical Drawing
