Champs-Tech DC1929A PNs for Analog Ref Designs & Demo Boards

Forward Active Clamp Topology -- Highest Efficiency. Planar Design. Aggressive Interleave planar construction -- lowest achievable Leakage Inductance. Multilayer PCB optimization for lowest AC resistance and Proximity Effect. Wide variety of Turns Ratios in stock. Contact Us for DC-DC Module Design Contact Us for SM Assembly of all Components for DC-DC Converter

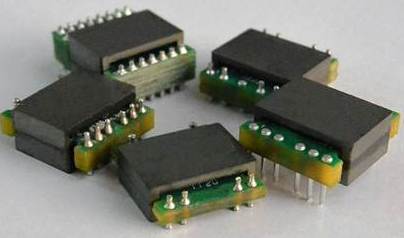

1. Ref Design DC1929A Based. "Off-Line" Input Voltage Range 150-420. Champs PNs & DC1929A Catalog

Champs PN

Vin (Min)

Vin (Max)

Vout

Io

80R2-5AC-3125002-1M2

150

420

5

30.0

80R2-12AC-3124005-1M2

180

400

12

16.7

80R2-15AC-3115006-1M2

180

400

15

12.5

80R2-24AC-3124010CT-1M2

150

400

24

10.0

80R2-24AC-3206CT-1M2

300

400

24

10.0

80R2-28AC-3222008

180

400

28

10.0

80R2-30AC-3208-1M2

300

400

30

8.0

80R2-24AC-3124010CT-1M2

300

400

57

3.0

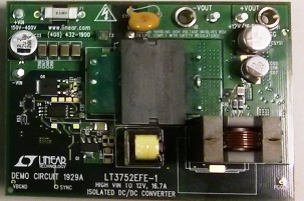

Linear Technology DC1929A URL

®Linear Technology Inc

Options include discrete component or integrated complete DC-DC Converter Module:

• Surface Mount Discrete Component Design.

• Discrete Component Implemented in Pad-to-Pad Mounting.

• Component implemented as Half-Embedded Design + SM Assembly of all components required of DC-DC Converter.

• Implemented as a Fully Embedded Design + SM Assembly of all components required of DC-DC Converter.

• SMT Component Assembly of PCB Including Planar Magnetics Inclusive of Converter Testing. Volume capacity 100K per month

Notes:
1. Consult Linear Tech Ref Design BOM and Schematic for exact device as specified for use by Linear in that Reference Design.
2. In all cases Champs Technologies makes no representation as to suitability of the Reference Design itself as that is the design responsibility and Intellectual Property of Linear Technology.
3. Champs Technologies responsibility is limited to the use of its component as described in the Data Sheet and any warranty express or implied is limited to component replacement if found defective.
